Ground investigation and land survey
Site data for safer foundations and better design: CPT, boreholes, in-situ testing, survey and monitoring, with soil testing at NatTest Lab.
Services
Plan your investigation
CPT and CPTU
1Continuous soil profiling from cone resistance, sleeve friction and pore pressure.

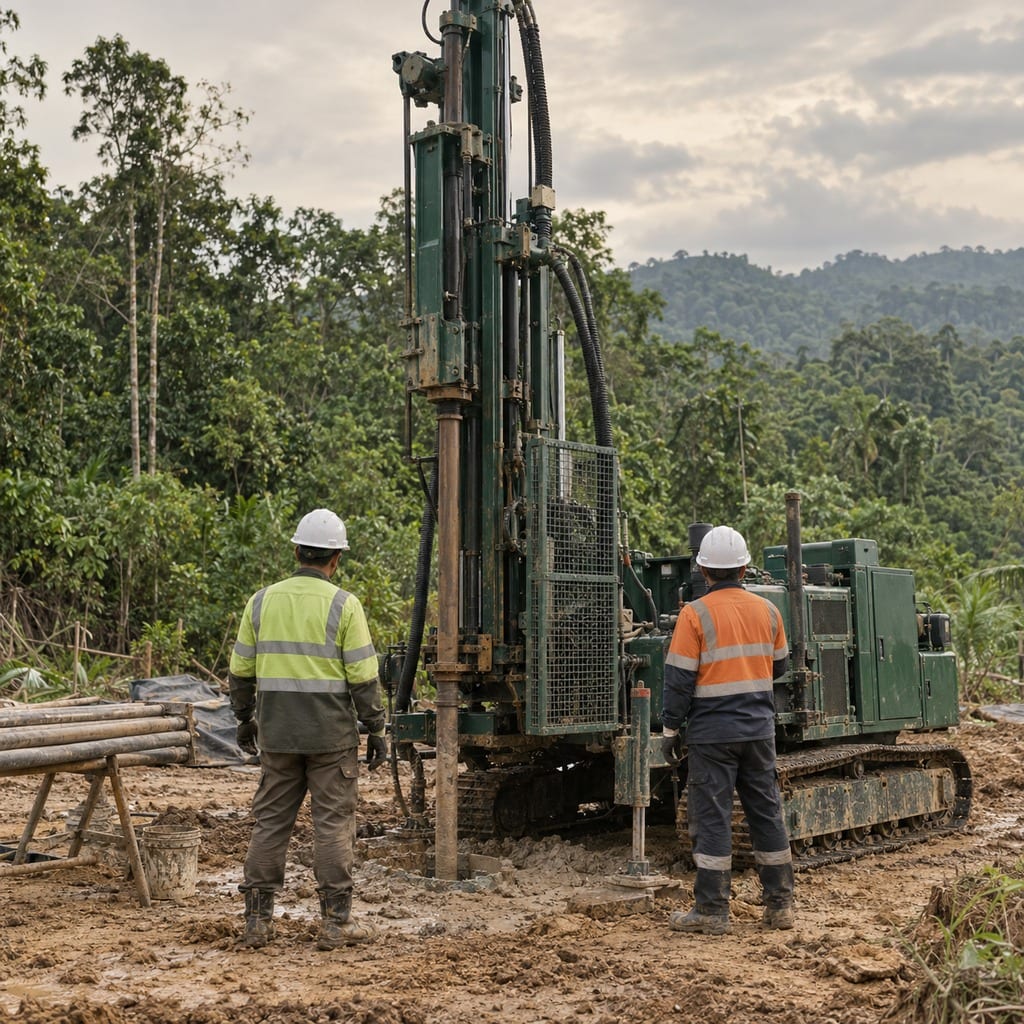

Boreholes, SPT and sampling
2Drilling, Standard Penetration Tests and soil and rock samples.

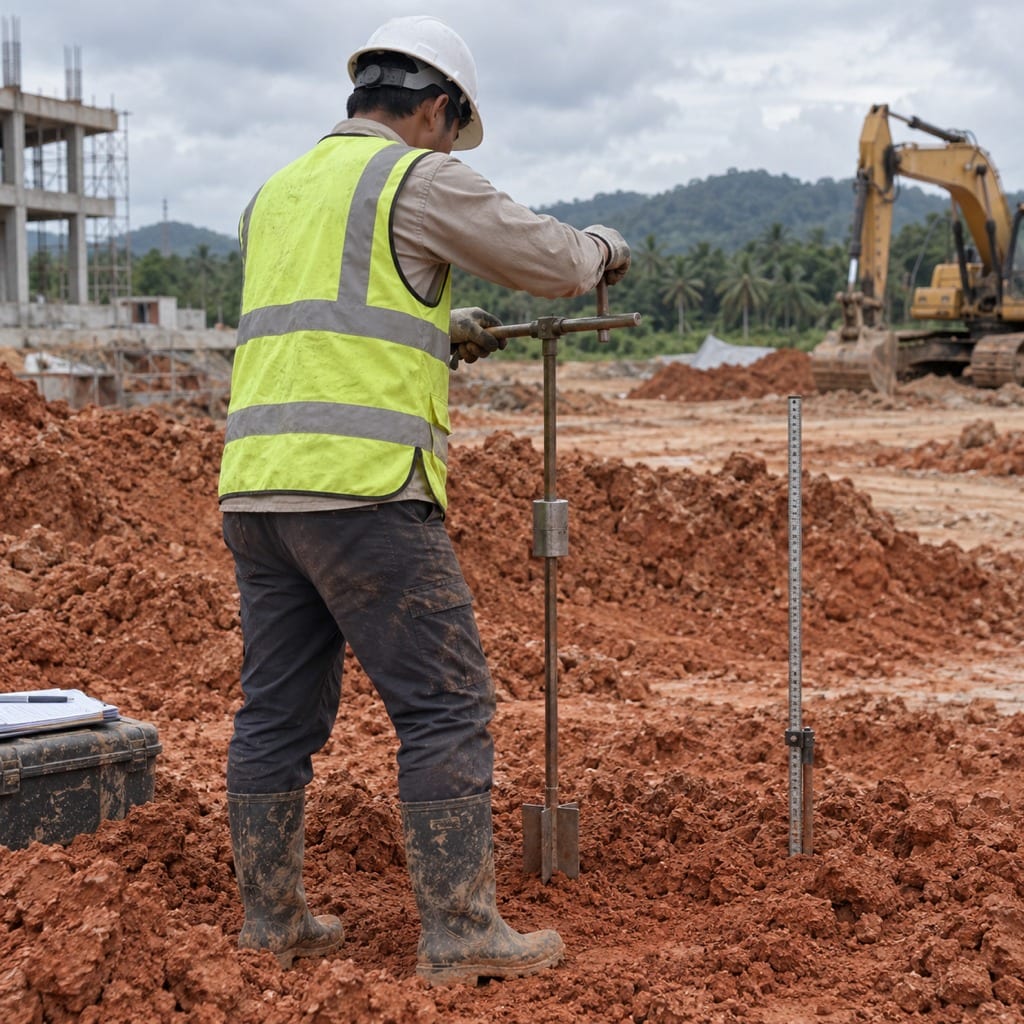

In-situ ground testing
3Mackintosh probe, field vane, permeability and field density tests.
Soil laboratory testing
4Classification and engineering tests at NatTest Lab.

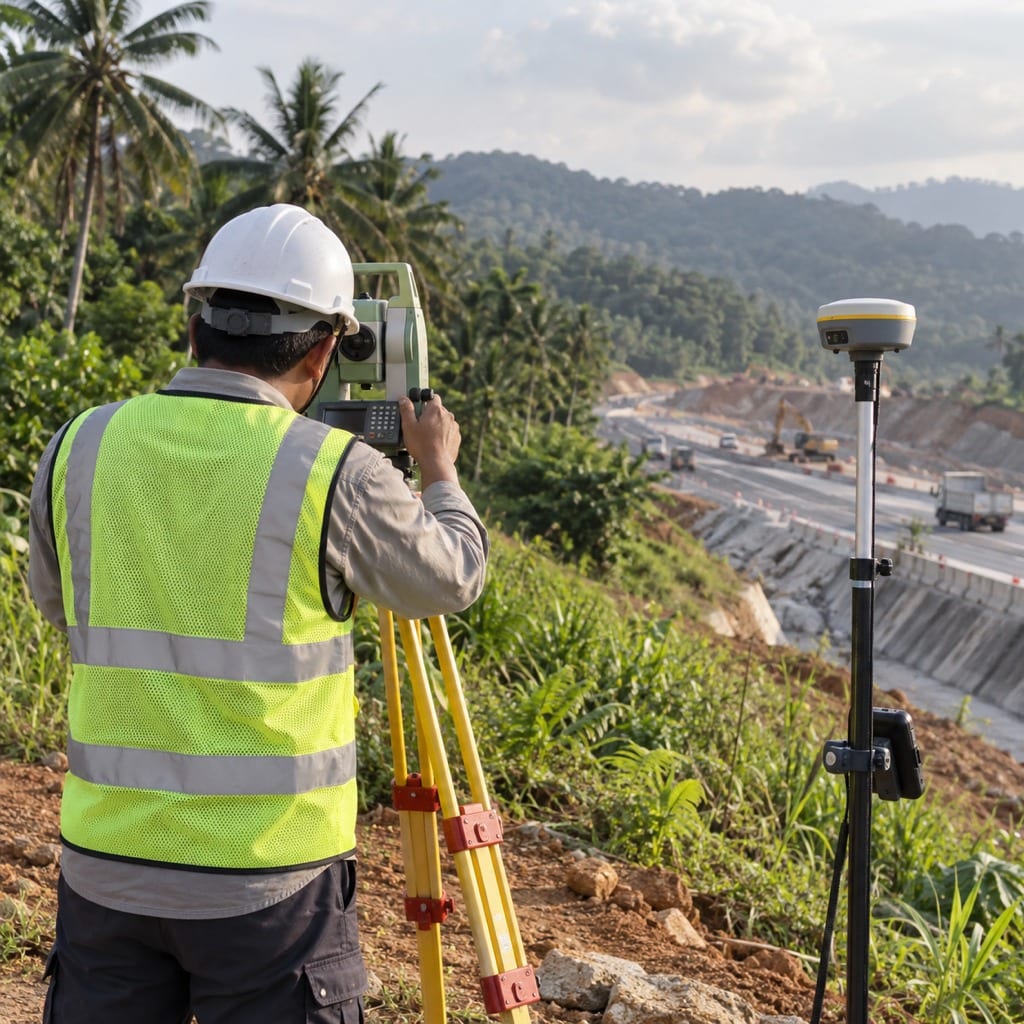

Land and engineering survey
5Topographic and engineering survey, setting-out and as-built plans.

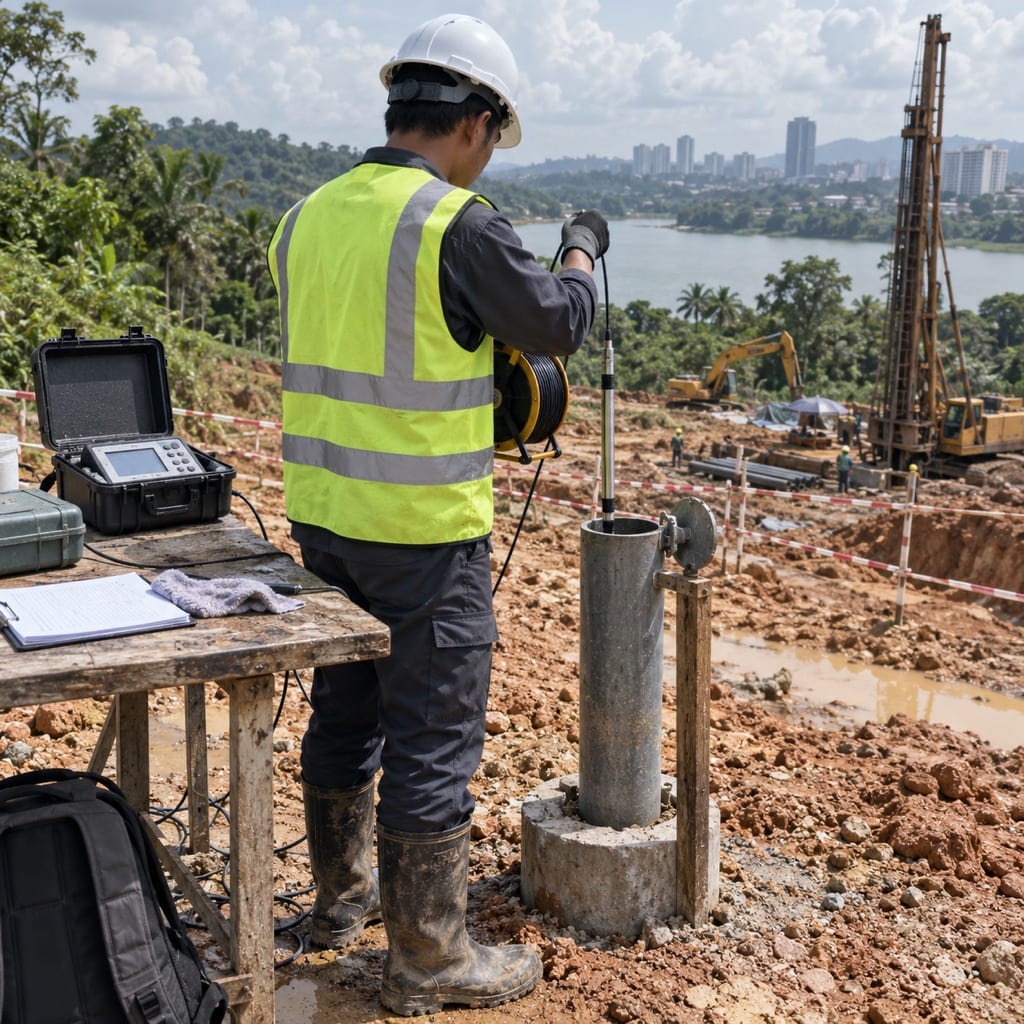

Instrumentation and monitoring
6Settlement, inclinometers and groundwater monitoring.
How it works
From site to report
- 1
Brief
Your site, the structure and what the design needs to know.
- 2
Plan
Test locations, methods and the reporting you need.
- 3
Fieldwork
Testing, drilling and sampling on site by our field team.
- 4
Report
Logs, plots and test results for your engineer.
Equipment

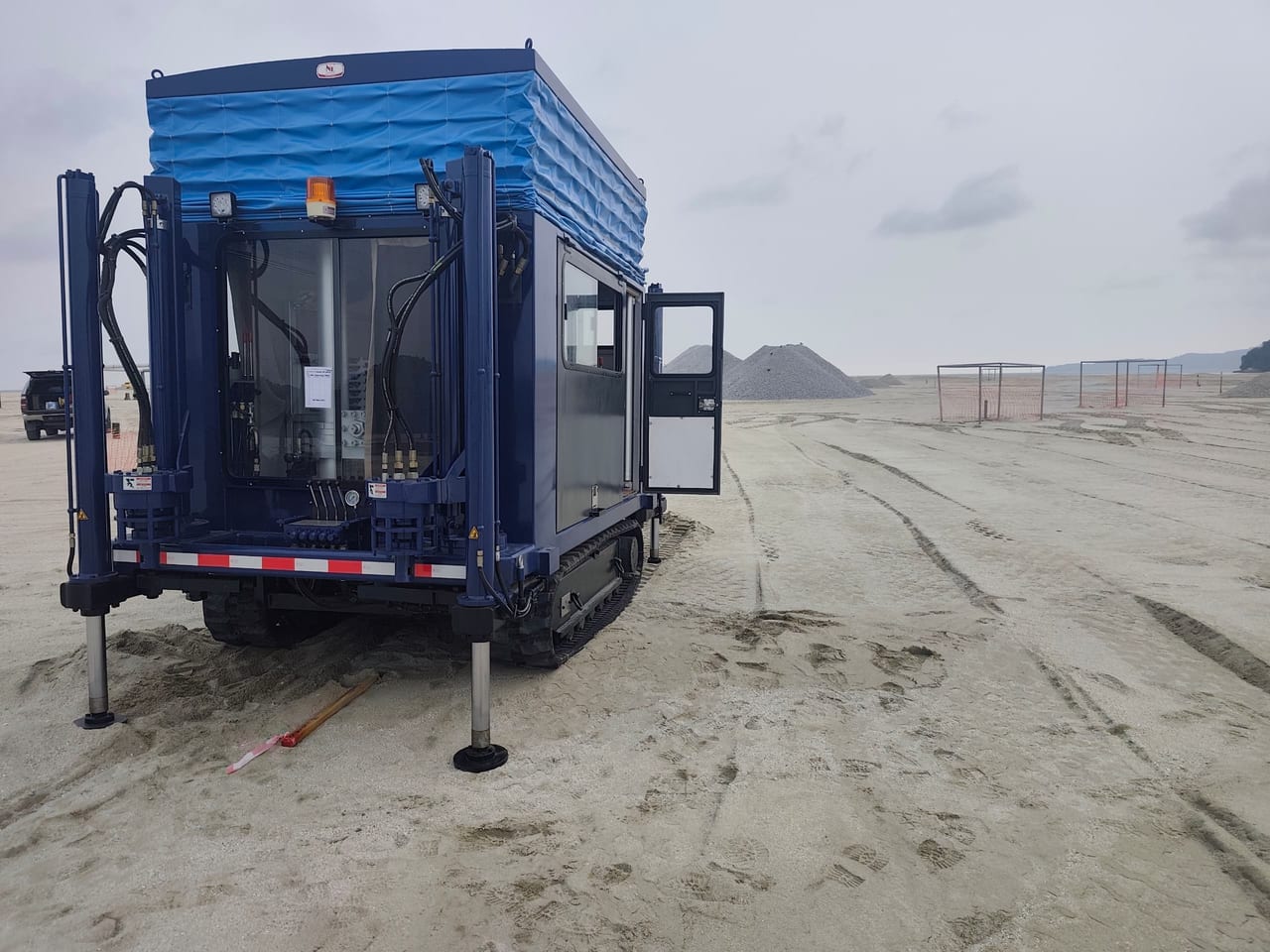

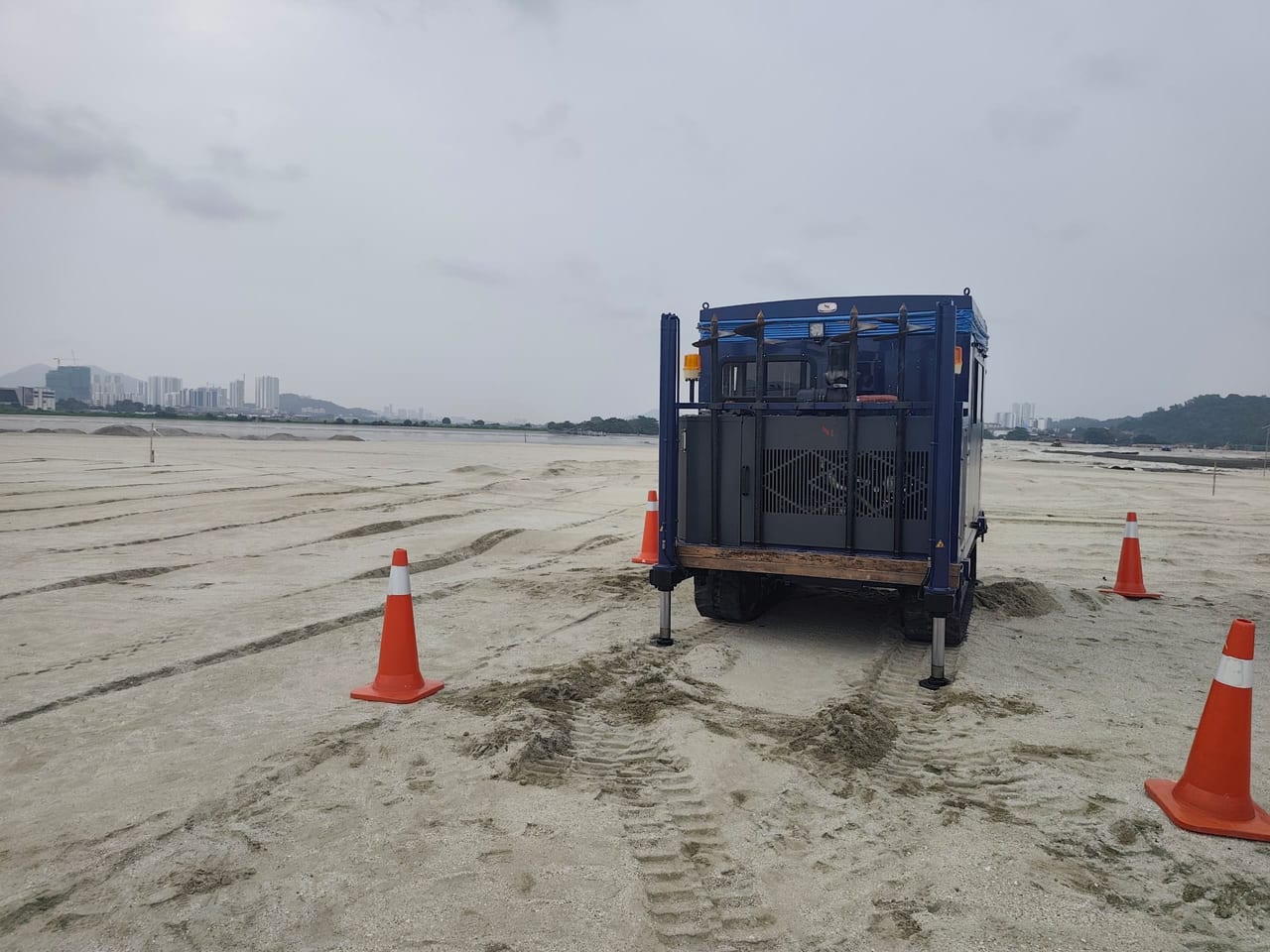

DYLC-Z25-X crawler CPT rig
A fully hydraulic, tracked rig that uses its own weight for reaction, built for cone penetration testing on soft and difficult ground.
CPT and CPTU
| Rated penetration force | 200 kN |
|---|---|
| Rated lifting force | 250 kN |
| Stroke | 1,100 mm |
| Chassis | Tracked crawler, 600 mm tracks |
| Weight | 20 t including counterweight |
| Cone sizes | 10 cm² and 15 cm² |
| Power | 88 kW |
Supplier catalogue specification.

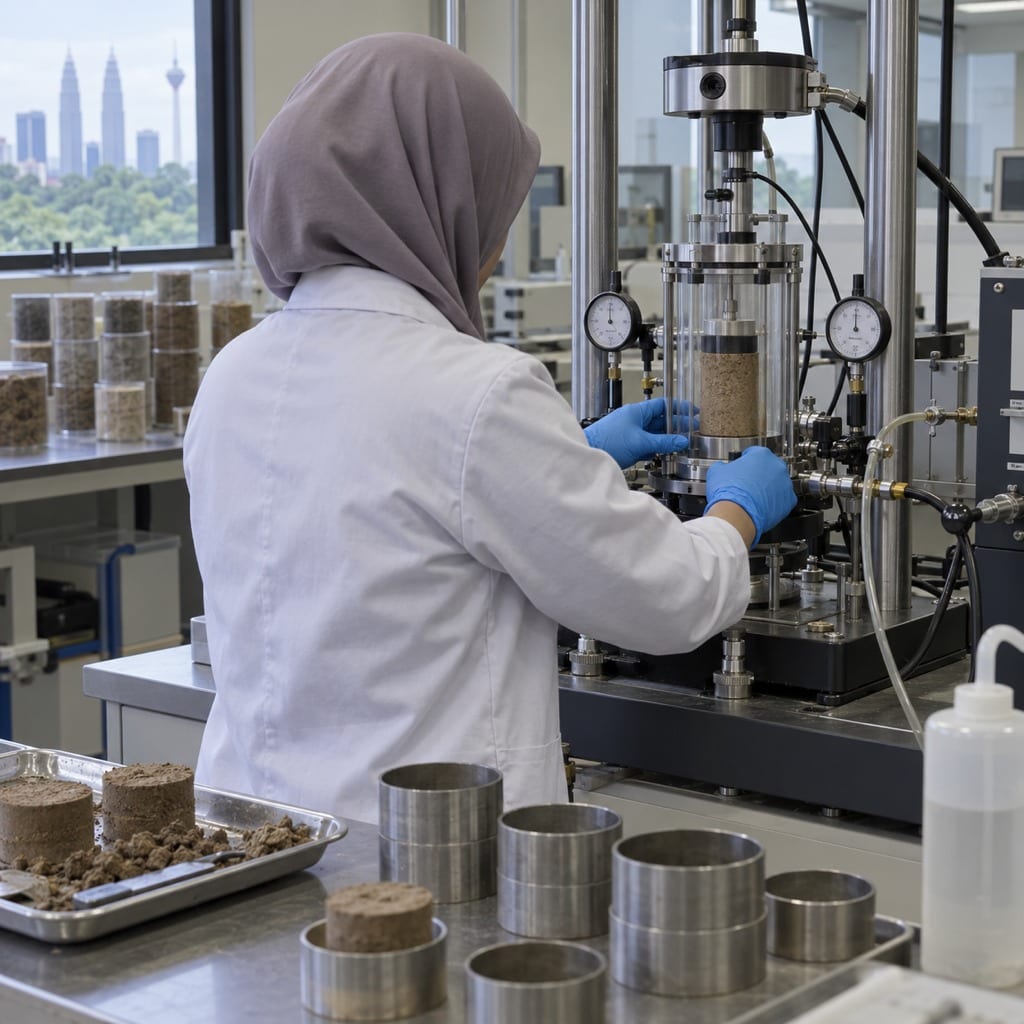

NatTest Lab
From field to laboratory
Samples from your boreholes go to NatTest Lab for classification, strength, compaction and consolidation testing, so the field data and lab results come from one team.
- Classification and Atterberg limits
- Particle size and hydrometer
- Compaction and CBR
- Shear strength and triaxial
In the field
NattestGeo on site
Planning a site investigation?
Share the site location, the structure and what you need to know.
